Star Wars Death Star Christmas Bauble

A slightly unplanned project. We needed to test a 3D printer in the office, and seeing as it was Christmas, we printed a Death Star Christmas tree bauble. We already had a Star Wars themed Christmas tree, so it fitted nicely.

The Death Star model came from Thingiverse. The print took about 5 hours and as it was only our second 3D print, it was a pretty good quality.

3D printed Death Star

3D printed Death Star

3D printed Death Star

3D printed Death Star

It had a void in the middle, which fitted an Arduino Mini, so I installed some LEDs to make it flash …

I used a 24 RGB LED NeoPixel ring from Adafruit and an Arduino Pro Mini from SparkFun and a high brightness green LED.

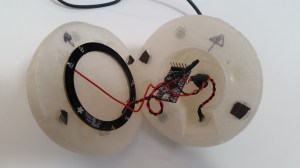

Death Star bauble innards

Death Star bauble innards

With the help of some hot glue, I installed the flashing innards. the two halves are held together with bits magnets from an old hard drive. Its powered by a USB power adapter, and the bauble hangs from the cable.

Star Wars Themed Christmas Tree

Star Wars Themed Christmas Tree

I’m pretty pleased with the result.

AVC – Switching from Arduino to mBed

Once the initial Arduino prototype was built I started having problems with the board. I rigged it on the bench with two servos attached directly to the speed and steering outputs. The code kept crashing and the board would hang. Normally in strange ways. I would comment out lines of code, and it would be more stable, then I’d put different code in and it would crash again. It seemed to have little to do with the content of the code, and more to do with the *amount* of code…

I had this problem before with my balance bot. The code randomly crashed there too and if you run some basic compiler tools on the code, the code is very close to the RAM limit of the microcontroller.

I had been looking at mBed for a few months and had bought a board to play with and this seemed like a perfect project to learn mBed on. I could have switched to an Arduino Mega, which is what I did on my Balance Bot, but the Mega is physically so much larger, and I wanted to fit the resulting controller inside the RC car, so I bit the bullet and scrapped everything I’d done to date, and started again with mBed. There’s nothing better than a looming deadline and nothing currently working to focus the mind on learning a new platform. 🙂

I had an LPC1768 mBed which had much better specs. I would classify its advantages over Arduino as :

  • Faster – 100 MHz vs. 16 MHz. Six times more instructions per second means more power. I could read the GPS and magnetometer at a much faster frequency and baud giving me better accuracy and control.
  • More hardware serial ports – 1 UART on the Arduino vs. 3 UARTs on the mBed – I needed a fast serial port for the GPS and one for debugging via xBee.
  • Hardware I2C for the magnetometer.
  • More RAM (32 KB vs. 2KB on the Arduino) more than enough to run all the various libraries and calculations without crashing.
  • Hardware floating point – This is important for GPS as the LAT/LON coordinates are all floating point numbers. There would be lots of complex trigonometry with floating point numbers happening every second. Hardware floating point would be a huge improvement in performance.
  • The last benefit was unexpected. The mBed has an RTOS library that allows you to run multiple independent threads. This made the code design much simpler. Rather than having one big main loop, that has to do everything, I could split up the tasks in the threads. E.g. one just ingesting and parsing GPS NEMA data, one outputting debug information, one running the PID control loop, etc.

The design changed from Arduino to mBed over night and I planned a new board. Although this has only taken a couple of blog pages to explain, it took about 6 weeks in elapsed time. Lots of late night debugging, scratching my head, reading on the interweb and chatting to people on forums.

I designed another PCB for the mBed solution and using the cheap PCB fabs I calculated it would arrive a couple of weeks before the competition. I had no choice but to commit to this design. There would be no time to reinvent the solution a third time. In fact if it didn’t go well, I’d be soldering it on the plane, if I wasn’t lucky … 🙂

AVC 2013 mBed Custom PCB v2.1 layout

AVC 2013 mBed Custom PCB v2.1 layout

I added a battery meter to the final PCB design as a last minute addition. I had seen this video on the EEVblog describing the LM3914 LED driver. The worked example on the video was exactly what I needed to monitor the charge of my LiPo’s, so I added the circuit and LEDs to the final PCB. This would give me an easy visual reading of the battery condition before each run, reducing the risk of the run failing due to a low battery. In retrospect, I perhaps should have done this a different way. The LED driver was actually more complex and more expensive that driving the LEDs from the mBed directly. I have enough IO pins and I’m already taking an ADC reading of the battery voltage, but it seemed like a good idea at the time.

I sent the PCB design off which would give me a few weeks to convert the code.

I should point out here why I like having custom PCBs, instead of wire wrap or breadboards. I do jump to custom PCB very quickly in my prototyping phase. The simple answer is reliability. In the past I have run projects from a breadboard. But as always happens you drop the project, or it has to travel somewhere in a box, and suddenly two of the wires have popped out of the bread board. Typically you now waste hours tracing every connection to work out where they went and which ones have popped out. Plus with moving robots, the momentum of the bot tends to throw the boards around unless they are stuck down well, giving the same problem with wires coming lose. I like having a custom PCB. They are very cheap and easy to make (once you’ve used Eagle a few times) and they make the circuit an order of magnitude more reliable, much smaller and less messy. In addition they are just as easy to change if something is wrong, you can cut a trace and solder in a jumper wire in. Plus things like xBee, which has 2mm pitch legs, aren’t breadboard friendly, so you end up with breakout boards, again that come lose. Custom PCBs are just easy, cheap, and more reliable.

I started by porting the existing Arduino GPS and magnetometer libraries to mBed, which meant the bulk of my code would just migrate to the new platform. The mBed platform is fantastic. Its “proper” C++, not the cut down libraries of Arduino. I got things like printf back 🙂 which are huge resource hogs on Arduino.

There were other benefits too. There is a simple SD Card library, so I could store my waypoints on an SD card, which would mean making small edits during the competition wouldn’t mean I needed to recompile the code and upload it to the mBed, I could just edit the text file in an editor and re-read them.

I structured my code slightly differently to make use of the multithreading benefits of mBed too. I had three threads;

  • The first was dedicated to just ingesting the GPS NEMA strings and converting them in to numbers that were stored in a global variable structure. I ran the GPS at 4 Hz to give me good accuracy.
  • The second thread was dedicated to providing debug data. It ran every second, (or every 2 seconds) and dumped all the current readings of all the sensors and internal variables over the xBee. These would then be read by the desktop app and displayed in a user friendly way.
  • The final thread was the main loop. This ran the PID control and used the data from the GPS structure and magnetometer to feed the PID, and then set the steering servo with the output of the PID.

I got a prototype working on an mBed development board while I waited for the custom PCB to arrive. I used wire wrap as usual, with some jumper leads to plug in to the mBed. The prototype worked OK and I started to get a basic system working.

AVC 2013 mBed wire wrap prototype

AVC 2013 mBed wire wrap prototype



AVC 2013 mBed wire wrap prototype

AVC 2013 mBed wire wrap prototype

Here’s the test video the full system working on the bench for the first time. You can see the third channel switch the control between RC and mBed. During mBed control, the compass on the mBed controls the steering servo, and the wheels track the position of the compass. During RC control, the transmitter has control and the mBed does nothing.

Other posts in this series :

BalanceBot – Console App

Debugging Arduino programs can be difficult, as the only easy output method is a serial console. With lots of debug messages the console soon becomes full and difficult to read efficiently. The biggest issue is the console scrolls, so with lots of output the text scrolls past too fast to read. One solution is to write a simple app on your laptop/desktop that listens to the serial data and displays it in an app with a better layout. You can create individual text boxes that just display the values of key variables, and the app can scan the serial stream looking for these variables and update the text box every time it sees a new value.

Depending on your microcontroller code purpose, you can also chose more appropriate visual representations of your debug variables. For example, you could show an arrow on a compass to represent the value you get from a magnetometer, you can plot a point on a Google map page in and HTML control to show the position you get from a GPS, and you can display green and red dots to show the value of switches, etc.

I use Visual Basic, just because I find it easy. You can design the visual layout of the app easily, and the code is very simple, but *any* programming language will work. Pick one you are most familiar with. You don’t want to waste time building the debugging console, when you could spend that time debugging your microcontroller code.

I use two techniques in the serial protocol; I prefix each line with a symbol that defines what type of data the line contains and I use name / value pairs for data to display.

e.g.

#Init Motor Driver
#Init Wire library
#Init IMU
#Get first YPR
#Set initial Input variable
#Init IMU Setpoint
#Exit Setup
$StatusA = 1011
$CountA = 4294967255
$StatusB = 11101010
$CountB = 0
$Yaw = -130.54
$Pitch = -6.03
$Roll = 23.43
$Input = 23.4341
$Output = -400
$OutputA = -400
$OutputB = -400
$Heading = -137
$Button = 1

# – denotes debug messages. I add a time stamp to them and display them in a “messages” text box.

$ – denotes a name / value pair. The value is displayed in a text box for that name.

Instead of a difficult to read scrolling text window, I now have a stable windows app that displays each variable I want to track in an easy to read layout. In addition, I have a log of messages, with time stamps, I can scroll back through looking for interesting events. Finally, you can also decide to output some values are different frequencies, i.e. the fast changing values every 500ms, and the slow changing values every 5 seconds. The app also shows the current value for everything.

You can also get your microcontroller to listen to the input serial stream and use the app to send commands to your device. Add an XBee and now your microcontroller is wirelessly remotely monitored and controlled by your app on your desktop !

BalanceBot – Laser cut Acrylic

The frame of the robot is built from MicroRax but it has no “sides”. I needed to mount some switches, etc. plus I wanted to mount the Arduino board securely and the two mounting holes in the Arduino are at very specific locations which would be better secured to a flat surface. They didn’t line up with the MicroRax.

The initial prototype had a hardboard base, but I thought I’d use the opportunity to learn how to get laser cut plastic. I found a supplier, Ponoko, which had a very simple interface. A lot of laser cutting houses use AutoCAD or Illustrator file formats to define the shape to cut. As I didn’t have an applications that can produce these, I liked Ponoko, as it used PNG. This can be generated huge number of apps, a lot of which are free.

Ponoko provide a sample template. The format is very straight forward. The colour of the line in the file defines the cut the laser will make. E.g. Cut, engrave, etc. They also have a huge array of materials, including acrylic, leather, card, wood, paper, rubber, etc.

I designed a top and a bottom. The bottom has a hole for the cables. The top is engraved (no reason other than I wanted to try it and it looks cool :-)) I didn’t get the holes for the switches laser cut, I drilled them, as I didn’t know at the time what switches I would be using.

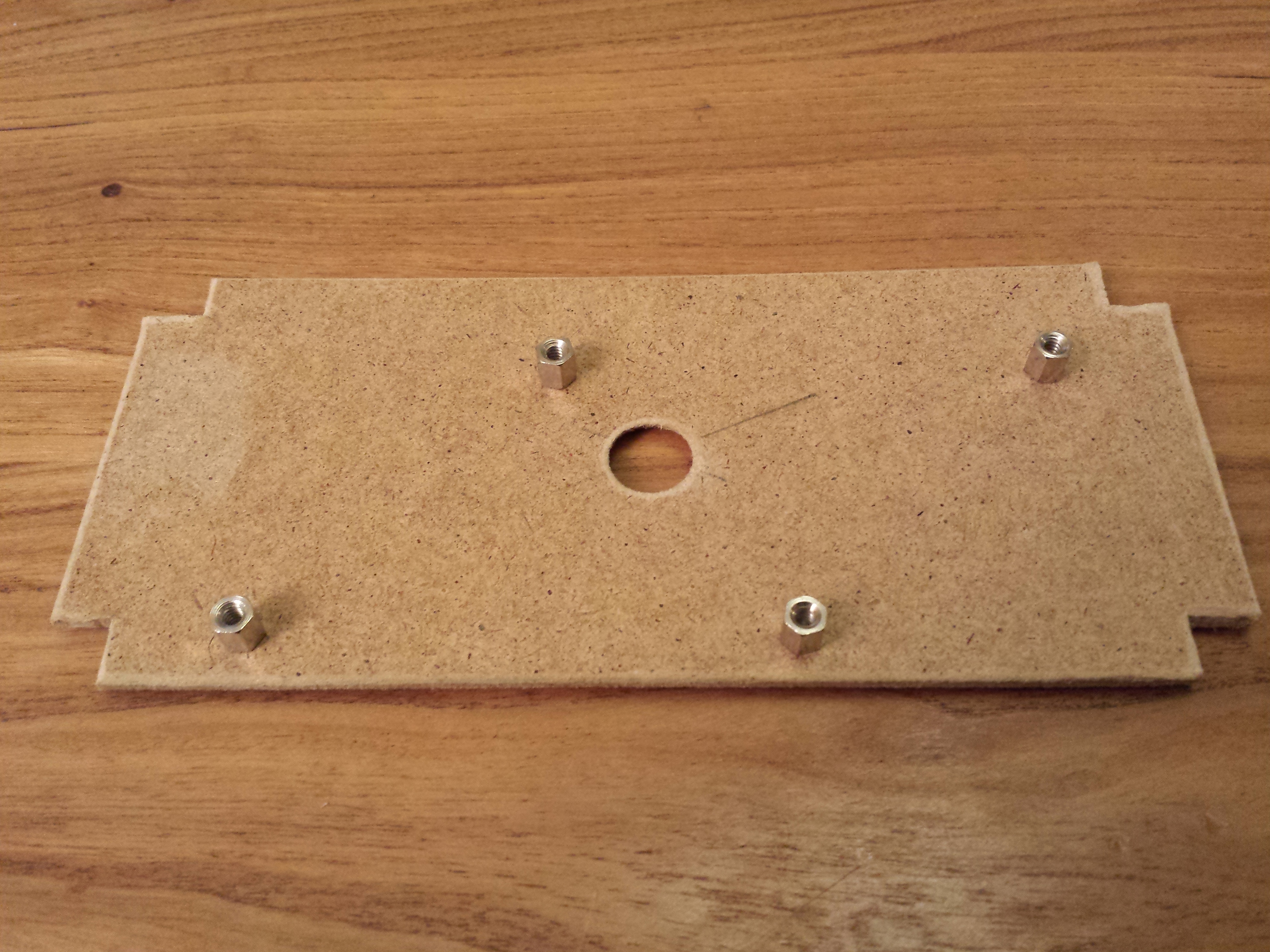

Hardboard BalanceBot floor with Arduino PCB mounts

Hardboard BalanceBot floor with Arduino PCB mounts

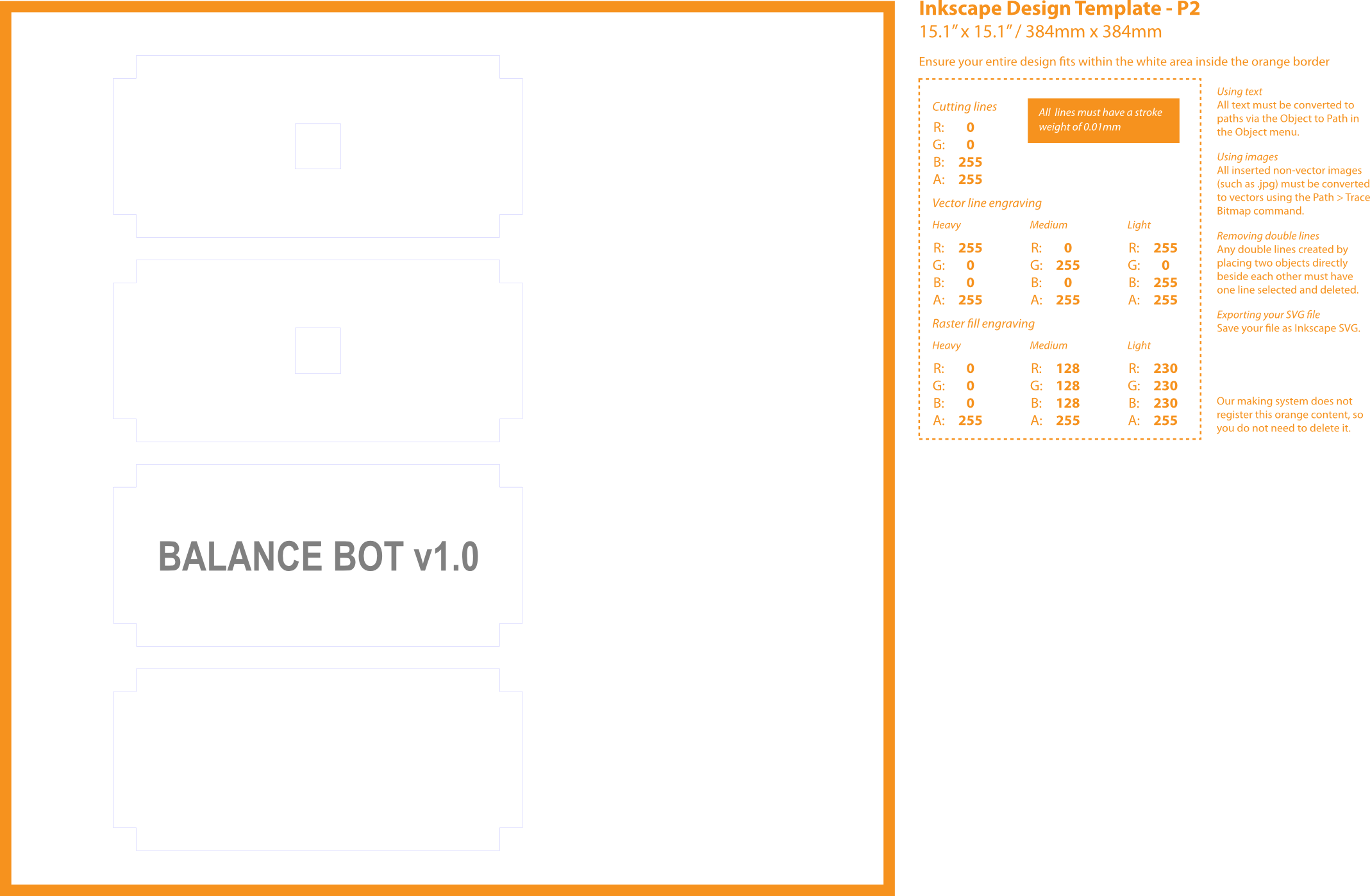

PNG file used to laser cut the acrylic. Different coloured lines represent different types of cut or engraving.

PNG file used to laser cut the acrylic. Different coloured lines represent different types of cut or engraving.

Laser Cut Acryilic sheets. Cut by Ponoko.

Laser Cut Acryilic sheets. Cut by Ponoko.

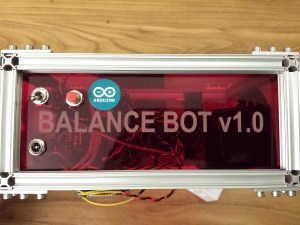

Laser cut acryilic top with laser engraving

Laser cut acryilic top with laser engraving

The acrylic panels made the robot look very professional, in fact people ask me where I bought it 🙂

The panels made mounting the boards and switches trivial. I used self-adhesive PCB supports for the Arduino. The holes on the Arduino are 3.2mm. I found PCB supports 6.4mm high from RS which fitted perfectly. The Acryilic is easy to drip, so I hand drilled holes for the switches and buttons.

BalanceBot – Arduino Code

With the use of the various libraries the main code loop is very simple. Once all the objects are initialised, the loop reads the robots angle, computes the PID output and uses that to set the motor speed and direction.

void loop()
{
my3IMU.getYawPitchRoll(ypr);
Input = ypr[IMU_ROLL];
myPID.Compute();
md.setSpeeds(Output,Output);
}

The system worked (ish). As mentioned previously, it took a while to find the PID parameters, and they are still not perfect. However I did get a problem.

The robot would balance, but after a few minutes, both motors would just turn on full. Sometimes one motor. The strange thing was sometimes the other motor would still be managed by the PID algorithm, and would change direction when the robot was tilted back and forth, so it wasn’t as if the Arduino had crashed. I initially thought there was a short circuit or lose connection but I couldn’t find one.

I had trouble in the past with other projects, where the code is large and complex, the Arduino sometimes exhibits strange behaviour. Not quite crashing, but being erroneous. I has a suspicion the device is running out of RAM. The programs either had too many variables, or too many recursive functions. I’ve not researched a way to model programs to estimate their RAM usage, or if there is a way to report RAM usage via the code. I’m sure there’s a way. Let me know if you have any ideas.

So, I just threw hardware at the issue, and upgraded the Arduino with a Mega, which has four times the RAM (8k on the Mega verses 2k on the Uno). This solved the problem immediately. Whereas the robot would “crash” every time on the Uno, the same code worked without any issue on the Mega.

One problem was the Mega though is it’s physically longer, so it sticks out of the side of the robot 😦

The other issue was the SPI and TWI pins on the Mega are on different pins to the Uno. Not a huge problem, but until I update the shield PCB, it means jumper wires.

Full code listing below:

#include <ADXL345.h>
#include <HMC58X3.h>
#include <ITG3200.h>
#include <Wire.h>
#include <EEPROM.h>
#include <FreeIMU.h>
#include <CommunicationUtils.h>
#include <DualVNH5019MotorShield.h>
#include <SPI.h>
#include <PID_v1.h>

//#define DEBUG
#include <DebugUtils.h>

// *** Duemilanova / Uno
// IMU uses I2C - pins A4 (SDA) & A5 (SCL)
// Quad counter uses SPI - pins D11 (MOSI), D12 (MISO) & D13 (SCK)

// *** Mega 2560
// IMU uses I2C - pins 20 (SDA) & 21 (SCL).
// Quad counter uses SPI - pins D50 (MISO), D51 (MOSI) & D52 (SCK)

// IMU constansts
#define IMU_YAW 0
#define IMU_PITCH 1
#define IMU_ROLL 2

#define Ku 20    // where is oscilates
#define Pu 0.4   // period of oscilation
#define Kp 0.6 * Ku
#define Ki (2 * Kp) / Pu
#define Kd (Kp * Pu) / 8

//IMU variables
float ypr[3]; // yaw/pitch/roll
FreeIMU my3IMU = FreeIMU();

//PID variables
double Setpoint, Input, Output;
PID myPID(&Input, &Output, &Setpoint, Kp, Ki, Kd, DIRECT); //or REVERSE

//MotorDriver
DualVNH5019MotorShield md;

void setup()
 {
  Serial.begin(115200);

  // Initialise Motor Driver:
  Serial.println("#Init Motor Driver");
  md.init();
  delay(50);

  // Initialise Wire Library:
  Serial.println("#Init Wire library");
  Wire.begin();
  delay(50);

  // Initialise SPI:
  Serial.println("#Init SPI library");
  SPI.begin();
  SPI.setDataMode(SPI_MODE0);
  SPI.setBitOrder(MSBFIRST);
  SPI.setClockDivider(SPI_CLOCK_DIV8);
  delay(50);

  // Initialise IMU:
  Serial.println("#Init IMU");
  my3IMU.init();
  delay(50);

  // Get Initial variables:
  Serial.println("#Get first YPR");
  my3IMU.getYawPitchRoll(ypr);

  // Initialise PID:
  Serial.println("#Set initial Input variable");
  Input = ypr[IMU_ROLL];
  Serial.println("#Init IMU Setpoint");
  Setpoint = 0;
  myPID.SetMode(AUTOMATIC);
  myPID.SetOutputLimits(-400,400);

  Serial.println("#Exit Setup");
}

void loop()
{
  my3IMU.getYawPitchRoll(ypr);
  Input = ypr[IMU_ROLL];
  myPID.Compute();
  md.setSpeeds(Output,Output);
  stopIfFault();
}

void stopIfFault()
{
  if (md.getM1Fault())
  {
    Serial.println("#M1 fault");
    while(1);
  }
  if (md.getM2Fault())
  {
    Serial.println("#M2 fault");
    while(1);
  }
}

BalanceBot – PID Controller

A  PID Controller is a software algorithm typically used to control industrial processes. A PID Controller (Proportional Integral Derivative Controller) calculates the difference between a measured variable and a desired set point. The controller attempts to minimize the error by adjusting the input.

A good example of why a PID Controller is better than other methods of control, is an electric oven. The input is the power to the heating element, the output is the temperature and the set point is the desired temperature.

Without a PID controller, If you turn the power on and off using a simple thermostat, when the temperature of the oven reaches the set point the oven will over shoot the temperature as there is residual heat left in the heating element. If you want the temperature of the oven to be 200 degrees, and have the element fully on until it reaches 200 degrees, then turn it fully off, the temperature will overshoot to maybe 205 degrees, then slowly cool until it reached 199 degrees when it will turn fully on again, however it will take time to heat up, in which time the oven has cooled to 195 degrees, and so it repeats. The oven will oscillate between 195 and 205 degrees, and not actually be a steady 200. This is fine for cooking sausages, but no good for a delicate chemical process.

The PID Controller has three values; the Proportional, the Integral and the Derivative values, denoted P, I, and D. Heuristically, these values can be interpreted in terms of time: P depends on the present error, I depends on the accumulation of past errors, and D is a prediction of future errors, based on current rate of change. By combining the three terms continuously the algorithm maintains the desired set point with minimal errors.

Simple huh ? Well kind of… The maths is a bit complex, but again, there are existing libraries that do it for you. On the Arduino site you can download a fully working PID Controller library, to integrate in to your project : http://playground.arduino.cc/Code/PIDLibrary

The only problem is you need to “tune” a PID Controller to your specific application. The P, I & D terms will be different for an oven, chemical tank, or balancing robot. There are lots of ways of tuning a PID Controller, from mathematical, to trial and error. A control systems friend of mine recommended I try the Ziegler–Nichols method.

The Ziegler–Nichols tuning method is as follows;

  • The P, I & D terms are referred to as “gains” Kp, Ki & Kd.
  • The Ki and Kd terms are first set to zero.
  • The Kp term is manually increased until the robot reaches the ultimate gain, Ku, at which point the it starts to oscillate.
  • The oscillation period Pu is measured and used to set the PID terms as follows :
  • Kp = 0.6 * Ku
  • Ki = (2 * Kp) / Pu
  • Kd = (Kp * Pu) / 8

This isn’t perfectly tuned to our specific system, but it’s a good approximation. PID tuning is a black art that requires a lot of knowledge and skill. This will do for the time being.

I am using the tilt angle of the robot as the input and the speed of the motors as the output.

The code is quite simple. The three variables are all floating point numbers.

double Setpoint, Input, Output;

The PID object is instantiated with the three PID values I calculated from my Ziegler–Nichols tuning method

PID myPID(&Input, &Output, &Setpoint, Kp, Ki, Kd, DIRECT);

The desired set point is 0 degrees, i.e. the robot is perfectly upright

Setpoint = 0;

Then in my main loop I get the angle of the robot, run the PID compute function, and using the output set the motor speeds.

void loop() {
  my3IMU.getYawPitchRoll(ypr);
  Input = ypr[IMU_ROLL];
  myPID.Compute();
  md.setSpeeds(Output, Output);
}

That’s the theory anyway … the results were mixed. It took a number of attempts to find the oscillation gain and period (Ku & Pu) accurately. And with those values, the PID controller wouldn’t balance the robot. It took lots of manually trial and error of various values to find something that was stable. PID tuning is very much a black art.

I did get it to balance though and it was more stable that the equivalent “cubed” algorithm I was using. However with the IMU code and the PID code on the Arduino, I started getting problems with the Arduino crashing. I can only assume it was running out of RAM.

I switched to an Arduino Mega and everything worked fine. So I’ve stuck with that for the time being. The Mega is much more stable, however the custom PCBs I made don’t fit the Mega, so the wiring is messy, plus the Mega sticks out of the frame. Next job is to make the PCB as a Mega Shield and turn the board round long ways so it fits better.

The PID controller is still not perfect, but it’s relatively stable. You can see it recovers from oscillation, which the basic controller didn’t. But It still drifts badly, and still falls over eventually. But progress none the less.I need to get the Quadrature decoders working so I can stop the drifting.

Here’s a short video of the PID Controlled BalanaceBot in action.

BalanceBot – Second Steps

The second test of my BalanceBot. This time on the carpet. It drifts a lot less and is quite stable. It just has a simple “cubed” function for control. Speed = Angle ^ 3. No PID yet.

BalanceBot – First steps video

The very first time my BalanceBot balanced. It drifts quite a lot, but not bad for a first attempt. It just has a simple “squared” function for control. Speed = Angle ^ 2. No PID yet.

BalanceBot – Sensors and IMU Library

The BalanceBot needs to know if it’s upright to balance. If it starts tipping over in one direction the robot needs to sense how far it has tipped over and speed up the motors in that direction to counter the tipping motion. This will compensate for the tipping motion by driving the bottom of the robot under its centre of gravity and stand it back upright again.

Sensing the angle of the robot on a simple level could be achieved with a single g-force sensor or accelerometer. The accelerometer measures acceleration. Our planets gravity, acting on an object, is acceleration, so the accelerometer can be used to measure gravity. Gravity always pulls down towards ground at a constant value. By knowing the value you can calculate the angle of the sensor. If the sensor reads 1g, the sensor is “vertical” with the ground. If the accelerometer reads 0g the sensor is “horizontal” with the ground. By using trigonometry, the value of g can be used to calculate any angle of the sensor.

However this is only true if the sensor is perfectly still, and the only acceleration acting on it is gravity. As we are going to mount this in a moving robot, the acceleration of the robot will cause the accelerometer to read not just the gravitational force, but also any acceleration of the robot, which will render the reading inaccurate when calculating the angle of the robot.

Another method of measuring the angle of the robot is with a gyroscope. A gyroscope measures rotation velocity around an axis. If you know the angle of the sensor to start with, then continuously measure the rate at which it rotates, you can calculate the current angle. This has two issues; firstly you need to know your angle to start with and secondly any error in the calculation is compounded with time, so the calculated value “drifts” over time and become less accurate. However a gyroscope is immune to interface from acceleration.

So, if you can combine the accelerometer data and gyroscope data together you can use both readings to compensate for the inaccuracies of the other. The accelerometers can compensate for the gyroscope drift as they give exact readings at a known time. The gyroscopes compensate for the non-gravitational acceleration as they only measure rotation velocity.

This process is called “sensor fusion”. There are lots of method of processing the accelerometer and gyroscope data to give a single accurate angular reading. These include Kalman Filters and Complimentary Filters. The maths can get a bit complex but it’s all based on trigonometry. You could write your own code, but there are lots of existing, tested, libraries that do this for you.

Using such a library and the appropriate sensor can give your orientation in 3D space, your Roll, Pitch and Yaw angles, or Euler Angles. This traditionally uses an additional sensor to measure yaw, as yaw cannot be measured with a g sensor, as yaw rotates around the vertical axis, and so the force of gravity doesn’t change. The easiest way to measure yaw is with a magnetometer, this measures the earth magnetic field and can calculate your orientation to “North” (magnetic north).

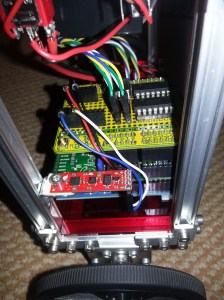

BalanceBot IMU - Sparkfun 9 DOF sensor stick.

BalanceBot IMU – Sparkfun 9 DOF sensor stick.

The individual sensors all work in a single plane, so a single gyroscope only measures rotational velocity in one direction. An accelerometer only measures acceleration in one direction. Depending on how much your sensor, or robot, moves, you may need three of each sensor in each orientation (x, y & z) to calculate your orientation in 3D space. For example, as the “X” axis accelerometer rotates it will no longer be vertical and will become horizontal at which point, depending on the orientation, of the sensor either the “Y” or “Z” accelerometer begin to point down. Using 3D trigonometry of the X, Y & Z accelerometer reading, you can begin to calculate the orientation in 360 degrees. This is called “three degrees of freedom” you are measuring 3 independent parameters that define its orientation. If you add three gyroscopes, and three magnetometers, you end up with 9 Degrees of Freedom, or 9DOF.

Using a 9DOF sensor and a maths library, you can calculate (almost) any orientation accurately. This combination of sensors and maths is called an Inertial Measurement Unit or IMU. There are lots of these, ranging in accuracy and cost. They can cost thousands of pounds. However there are lots of hobby level devices too for less than £100.

You have the choice of separate sensors and use your own CPU for the maths, or use an all in one device that includes its own CPU. I have an UM6-LT Orientation Sensor from CH Robotics for a different project. They are easy to interface to and do all the Kalman filtering for you on board and provide the filtered, stable Euler Angles via a serial interface. However I was using this device in a different project.

There are many 9 DoF boards containing just the sensors. FreeIMU is a popular board, cheap and compact. SparkFun produce a 9DoF Sensor Stick which I decided on, as its cheap, small and easy to interface to.

The FreeIMU site provides a GNU GPL license library for Arduino which supports not only the FreeIMU boards but also the SparkFun boards and the DIYDrones ArduIMU. This provided the sensor fusion calculations to provide a stable combined output from the raw sensors.

The SparkFun board uses an I2C interface to communicate with the Arduino. This is a bidirectional serial interface, using just two data wires, and power.

To be clear I didn’t need a 9DOF board in this simple robot, as I only needed to calculate the robots orientation in one axis (the axis that rotates around the wheels) however, by using a 9DOF board I get full 3D orientation which means it doesn’t matter which direction I mount the sensor in, plus I intend to use the magnetometer reading to capture the “heading” the robot is traveling on so I can make it travel in a straight line. It was also fun to learn.

There are two common ways to represent a 3D orientation; Euler Angles and Quaternions.

Euler Angles can be understood easily if you imagine an old fashioned gyroscope in an aeroplane. A spinning mass is suspended in space on 3 gimbal bearings, that each rotate in a perpendicular axis. As the aeroplane tilts left and right (rolls) the gimbals rotate to keep the mass level. This angle of roll is the Roll Euler Angle. Same for Pitch, the movement of the nose of the plane up and down, and Yaw the rotation of the plane caused by the movement of the rudder. These three Euler angles define the Roll, Pitch and Yaw of the object. However Euler Angles have a flaw, as one of the axis rotates 90 degrees, it aligns with one of the other axis. In fact all three axis can align. This is called Gimbal Lock.

Gimbal lock is the loss of one degree of freedom in a three-dimensional space that occurs when the axes of two of the three gimbals are driven into a parallel configuration, “locking” the system into rotation in a degenerate two-dimensional space.

This means in some situations Euler Angles cannot accurately define our orientation. However they work fine for movements that do not exceed 90 degree rotations, which is our case if fine, as we will only be “wobbling” a few degrees from vertical. (I hope)

An alternative system is called Quaternions which does not suffer from Gimbal Lock. This uses imaginary numbers to define our three dimensional orientation, and is way too complex to try and explain here. Plus I don’t really understand it enough 🙂

So, I stuck with Euler Angles.

The FreeIMU library provides a simple function to calculate the Euler Angles :

my3IMU.getYawPitchRoll(ypr);

This fills a 3 dimensional variable with three floating point numbers, which contains the Pitch, Roll and Yaw angles.

With my sensor mounted as it is, the “Roll” angle is the rotation around the wheels, this is the only value I use:

angle = ypr[IMU_ROLL];

With just this value I can balance the robot. If the angle is positive, I drive the wheels in one directions and it the angle is negative I drive the wheels in the other direction. By proportionally driving the wheel speed, relative to the angle, the robot balances. I tested it using a cube function. i.e. Speed = Angle ^ 3

If the angle is 1 degree, the speed is 1 (slow), if the angle is 2 degrees the speed is 8 (faster), if the angle is 3 degrees the speed is 27 (quite quick), etc. The more the robot falls over the faster the wheels rotate to stand it back up. When the robot is upright the speed is very slow so the robot doesn’t overshoot and start to oscillate.

Of course it does oscillate with this very simplistic control algorithm and falls over. We need a more complicated control algorithm to stop the oscillation.

A PID Controller works well. More on that next…

BalanceBot – Quadrature Decoders

I’m old school when it comes to prototyping. I tend to test bits of the initial circuit on a breadboard, but quickly move to a prototype board using wire wrap. I’m a big fan of wire wrap prototyping over breadboard. It has lots of benefits;

The wires in Breadboards have a tendency to fall out if moved or quickly become a birds nest if the circuit is complicated.

Breadboards don’t stack neatly like shields, so they are difficult to mount in the chassis.

I knew my Robot was going to fall over a lot initially, so I wanted something sturdy that could take some knocks, without falling part, but could be changed easily if I got something wrong (you always get something wrong)

I found some great prototyping boards from FreeTronics.com (ProtoShield Pro for Arduino). These have a reset button, a general purpose button and general purpose LED mounted around the edge of a grid of holes. This is great for prototyping. The boards are well designed with easy access to power rails and they’re cheap.

I buy long pin through hole sockets for wire wrap and solder just two legs of the socket (at diagonal corners) on to the prototype board, just to hold the socket in place. You then use special thin wire wrap wire and a tool that twists the wire on to the pin, to wire your circuit. There’s no soldering to wire the circuit (just a dab to hold the socket on to the board) the friction of the wire wrapped around the pins holds it tight. You can cut the wire to roughly the right length for each connection, so the board stays tidy and does not resemble a birds nest.

Quadrature Counter Shield

Quadrature Counter Shield

If you make a mistake, you can use the tool to unwrap the wire and you just replace it with the correct connection. Once the circuit is complete, the board plugs in as a normal shield, and it’s robust enough not to fall apart in use.

The LS7366 Quadrature Decoders are chips made by LSI. There is a decoder IC for the quadrature encoder on each motor. The ICs have a 32 bit counter, so they can count about 4,294 million pulses before rolling over. They have an SPI interface so it’s just 5 wires to connect them both to the Arduino (three common SPI data lines and two slave select lines). The SPI interface uses common data and clock lines from every device (slave) to communicate to the Arduino (master). The master controls who can talk on the data lines, through a unique Slave Select (SS) line connected to each device. When the slave select line is held low that device talks to the master. When the slave select line is high, the slave ignores the data lines and puts the pins in a “high Z” state, i.e. they are isolated from other signals or devices connected to the common data lines.

  • MISO – Master In Slave Out (data from the chip to the Arduino)
  • MOSI – Master Out Slave In (data from the Arduino to the chip)
  • SCK – Clock

These three lines are all connected in parallel.

  • SS – Slave Select is unique to each slave and is connected back to a separate pin on the Arduino.

In this case, I used Arduino pins 3 & 5 for the two quadrature decoder slave select lines (one for each motor). The SPI data and clock pins are pins 11, 12 & 13 on the Arduino.

LS7366 Quadrature decoder shield schematic

LS7366 Quadrature decoder shield schematic

I had a few issues with the wire wrap prototype, misreading my own initial circuit diagram, but I soon got it working.

The code is simple, but understanding the data sheet took some time. To setup SPI on the Arduino, you have to set three parameters, the Mode, the Bit Order and the Clock Frequency. They are all defined in the data sheet for your device.

The mode sets the phase of the signals for valid data, i.e. does the device response on rising or trailing edges of the clock. Wikipedia has a very useful entry on SPI : http://en.wikipedia.org/wiki/Serial_Peripheral_Interface_Bus

The Bit Order defines whether binary numbers are sent down the serial interface most significant bit first, or least significant bit first.

The Clock Frequency in the Arduino library is a multiple of the system clock. The maximum clock rate your device can handle will be in the data sheet. Then it’s just some simple maths to work out what multiple of the Arduino 16MHz clock you need to not exceed the maximum clock rate for your device. In this case I’m using “divide by 8” i.e. 2 MHz

There is an SPI library in the Arduino, which makes all this easy.

SPI.begin();
SPI.setDataMode(SPI_MODE0);
SPI.setBitOrder(MSBFIRST);
SPI.setClockDivider(SPI_CLOCK_DIV8);

To send data to and from the device you call the “Transfer” function while holding the correct Slave Select line low :

SPI.transfer(byte val);

This sends a byte (8 bits) out of the SPI bus. You’ll notice all SPI communications are 8 bits. Our counter is 32 bits, so I wrote some helper functions to read the 4 byte counter values. You just need to read the multiple bytes sequentially.

Here’s the helper function that reads the 32 bit counter values, which takes the slave select line as a parameter, so I can use it for either quadrature counter. It sends the read command and then reads 4 bytes in sequence, building them in to a 32 bit unsigned long.

#define  RD_CNTR B01100000
unsigned long ReadCounter(byte CSx)
{
  unsigned long result;
  byte b;
  digitalWrite(CSx,LOW);
  SPI.transfer(RD_CNTR);        // Read CNTR
  result = 0;
  b = SPI.transfer(0x00);
  result = result | b;
  result = result << 8;
  b = SPI.transfer(0x00);
  result = result | b;
  result = result << 8;
  b = SPI.transfer(0x00);
  result = result | b;
  result = result << 8;
  b = SPI.transfer(0x00);
  result = result | b;
  digitalWrite(CSx,HIGH);
  return result;
}

I don’t actually need the quadrature counters in phase one of the project to get the BalanceBot balancing. It will balance without them. However, it will probably drift from its original position as its balancing. The plan is to count the quadrature pulses as it drifts and then bring it back to its original position once it’s stable. This should mean if the robot gets knocked, it will move back to rebalance, and then slowly come back to where it was, maintaining its position.

Quadrature Counter Shield

Quadrature Counter Shield

Once I got the wire wrap version working, I converted the board to a custom PCB using Eagle PCB software and BatchPCB. More on that later…
